Transformer switching component

Oil Load Break Switch

An internal transformer switching component designed for load-break switching in oil-immersed distribution equipment.

Request a QuoteView Product Information

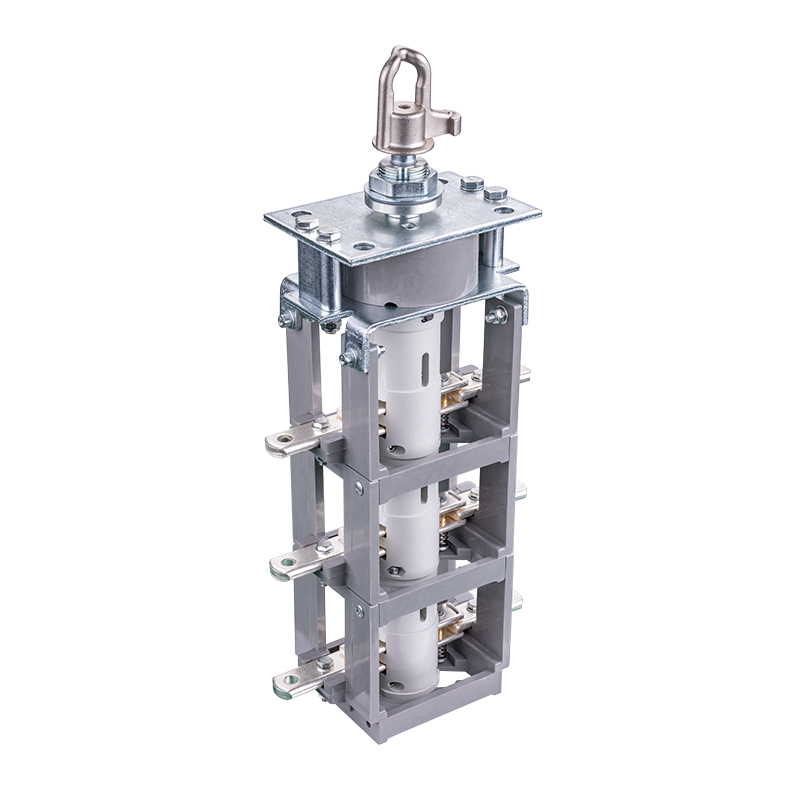

OUCO oil load break switch

OUCO product range

Key Product Data

Confirm the exact model against system voltage, current, switching position, operating method and transformer tank interface.

Standard page ratings
12 / 24 kV
Rated current
630 A
Switching positions
2-position / 4-position
Operation
Manual; motor option available
Request a QuoteRequest Datasheet
Final ratings, drawings and order data are confirmed against the selected model.

Overview

Internal Switching for Oil-Immersed Equipment

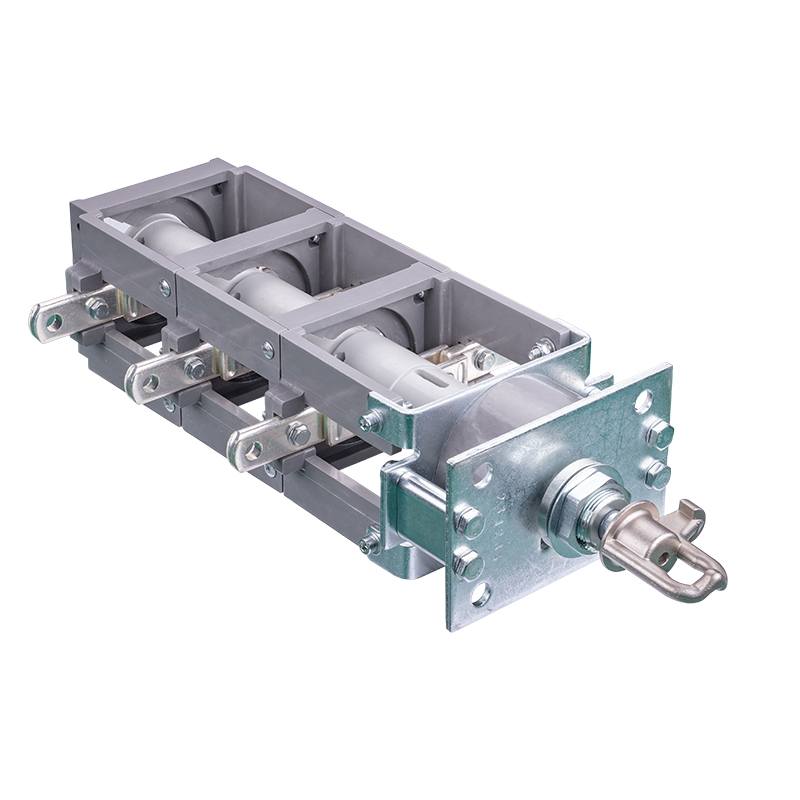

Installed inside the transformer tank, the switch uses insulating oil as part of the insulation, cooling and arc-extinguishing environment. The current product description identifies copper-alloy contacts, arc-resistant insulating material and a rotary mechanism.

Technical parameters

Verified Data, Clearly Structured

Published standard voltage12 kV / 24 kV
Published standard current630 A
Position options2-position or 4-position
InstallationInside the oil-immersed transformer tank
OperationManual; optional motor operation
Custom range stated by source10 / 20 / 35 kV and 200–630 A; exact model confirmation required

Standard specifications and customized ranges are confirmed separately against the exact switch model and transformer interface.

Ordering information

Confirm the Details That Change the Product

  • System voltage and rated current
  • Required switching function and position count
  • Manual or motor operation
  • Transformer tank interface and drawing
  • Quantity, destination and requested delivery

Documents

Request the Applicable Revision

Request the model-specific technical data and interface drawing before the switch arrangement is approved.

Request applicable documents

Start with the requirement

Discuss the exact Oil Load Break Switch configuration.

Send the available technical information, quantity and destination. OUCO will organize the questions needed for the next quotation step.
